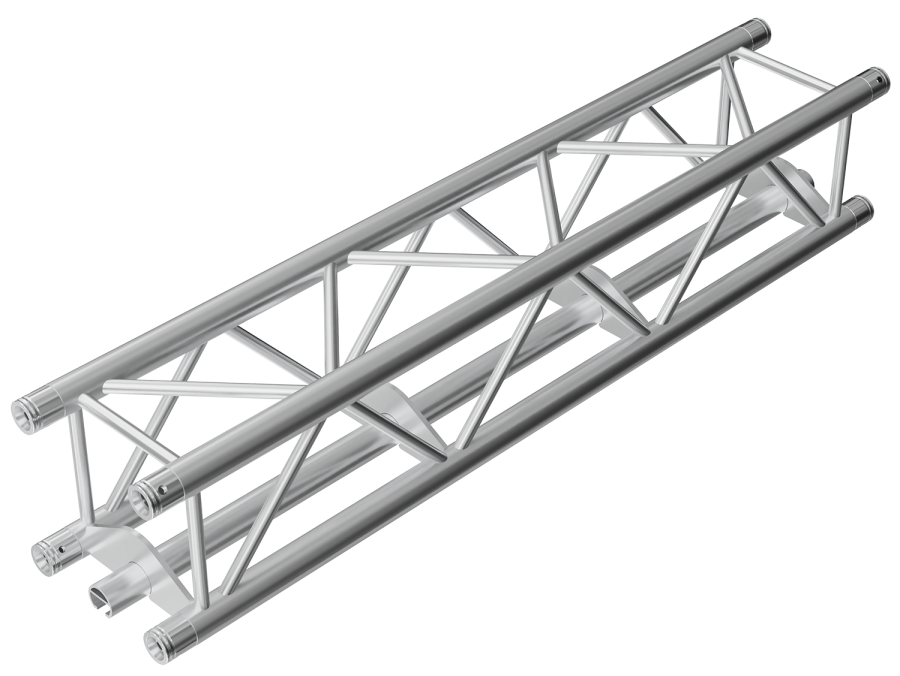

TC35

Specific design of TC35 trusses brings several options of equipment placing on the structure. It introduces 5 main tubes within the standard dimension range of 290 x 290 mm (12 x 12 in) aluminum trusses. Its heavy duty tubes and braces are designed to cope with high loading demands while, at the same time, the fifth C-profile rounded tube gives the installers two possibilities of equipment hanging. First option is using standard clamp or half coupler that goes around the tube. Second option is to use the rigging eye that can be safely attached into the C-profile tube. Another great advantage of using the rigging eye lies in the possibility of its placement anywhere along the fifth central tube with the C-profile. The central tube integration into the trusses is carried out through the application of pre-cut 5 mm (0.2 in) plates welded into the truss design.

Key features and benefits:

• 290 mm (11.42 in) square truss
• Certified 50 mm x 4 mm (2 in x 0.16 in) tube
• Aluminum plates 5 mm (0.2 in)
• Available in various lengths up to 3 m / 9.84 ft
• Certified spans up to 20 m / 65.62 ft
• Interior & exterior applications
• Connection kit supplied with straights
• Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
• Claw clamp 50 for in pipe welding on request
• Snap clamp compatible (8102-8105)
• Stack clamp for easy stacking (8106-8107)
• Quicklock connection system for quick and easy assembly
• Powder coat color finish available on request
