LED FRAME 4

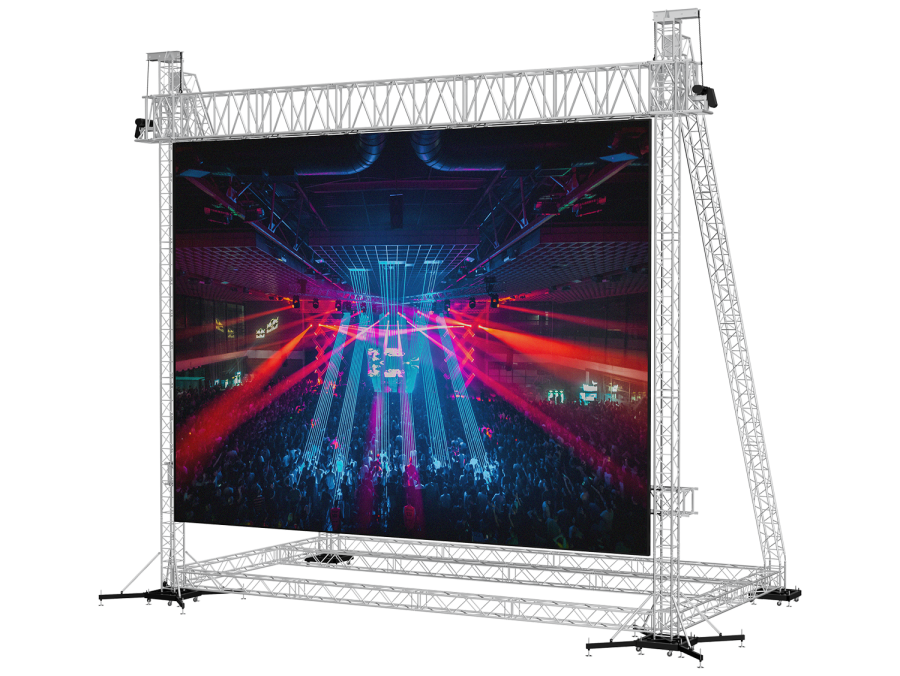

LED Frame 4 is the largest and strongest structure in the TAF LED frame range. It is designed to safely support LED screens up to 10 × 8 meters (32.81 × 26.25 ft) in size and weighing up to 3500 kg (7,716.18 lbs). The frame is suitable for both indoor and outdoor use, with wind resistance up to 15 m/s (33.55 mph).
The structure is built using heavy-duty truss segments with a Quicklock connection system, allowing for fast and easy assembly. All connection hardware is included as standard. Its high load capacity and stability make it ideal for large-scale events, concerts, festivals, and installations requiring strong and secure screen support.
|
MAX. DIMENSION |
14.12 × 12.21 × 8.13 m (46.33 × 40.06 × 26.67 ft) |
|
Max. LED size |
10 × 8 m (32.81 × 26.25 ft) |
|
MAX. HEIGHT |
12.21 m (40.06 ft) |
|
MAX. LOAD CAPACITY |
3500 kg (7,716.18 lbs) |
Contact us today for more information or to receive a price quote.
