TOWER 3

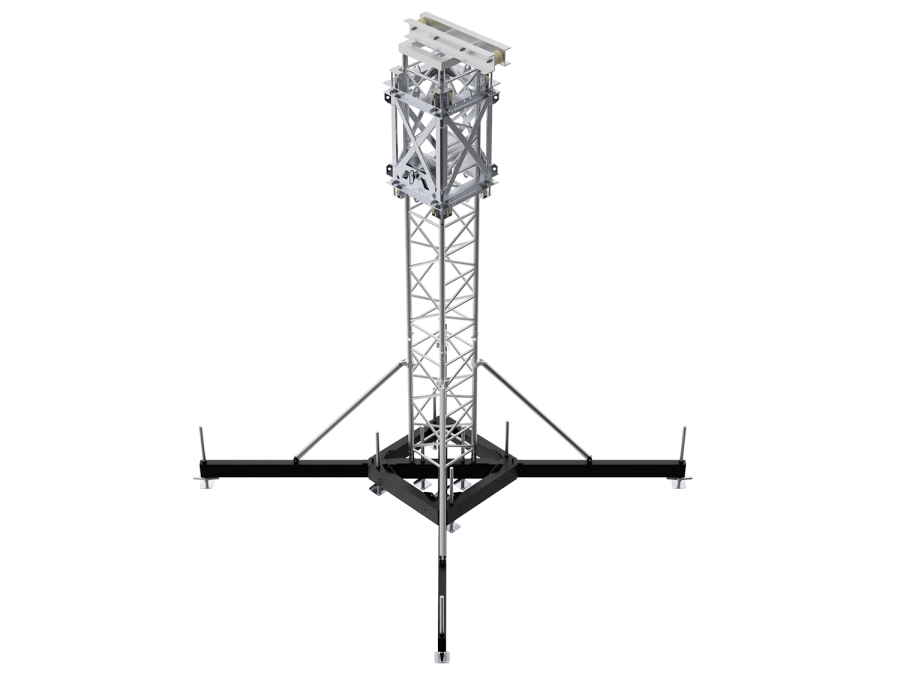

TAF Tower 3 is the tallest and most durable tower system in our range, designed for maximum stability and load capacity. Its structure allows for a height of up to 65,62 ft (20 meters) while supporting a maximum load of 17 636,98 lbs (8000 kg). The main tubes od the tower truss, measuring 2.36 x 0.18 in (60 × 5 mm), and braces, 1.18 x 0.12 in (30 × 3 mm), are made from high-quality EN AW-6082 T6 alloy, ensuring long-lasting durability and strength. This system is ideal for demanding structural projects where maximum reliability is required.

Key features and benefits:

• Lifting height: 65.62 ft (20 m)
• Max. loading capacity: 17 636,98 lbs (8000 kg)
• Material: High-strength aluminum alloy EN AW-6082 T6
• Welded sleeve block for secure truss attachment
• Four-way connection through the sleeve block for versatile configurations
• Suitable for both indoor & outdoor applications
• Connection kit included with straights and sleeve block
• Compatible with various clamps for easy integration
• Quicklock connection system with connectors, pins, and safety clips included
